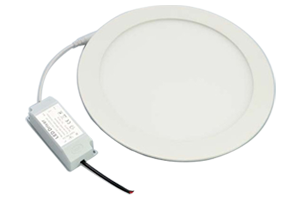

18-19W LED THIN PANEL
LED CHIP
| Name | SPECTRA LED THIN PANEL |
|---|---|
| Actual Power | 18-19W |
| Nominated Power | 18W |
| Size | Φ255mm |
| Cut-Out | Φ210mm |
| Light source | 2835 SMD EPISTAR TAIWAN |
| LED QTY | 90PCS |
| C.C.T. | 3000K/4000K/6000K |
| Input | AC180-260V 50/60Hz |
| Power factor | ≥0.45 |
| Material | Aluminum |
| Operating Temperature | -25°C ～ +50°C |
| Storage Temperature | -20°C ～ +40°C |
| Humidity | 10% ～ 65% |
| IP Rating | IP40 |
| Gurantee | 2Years 8-10hrs/day |
| CRI | ≥75 |
| Luminous Efficiency | 65-75lm/w |
| Beam Angle | 110° |
| pcs/ Carton | 20 |
| Item Code 3000KWW | R4S1006 |
| Item Code 4000KNW | |
| Item Code 6000KCW | R4S1005 |

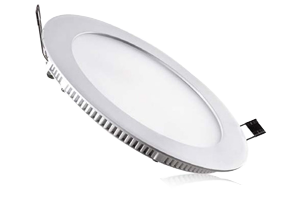

15-16W LED THIN PANEL
LED CHIP
| Name | SPECTRA LED THIN PANEL |
|---|---|
| Actual Power | 15-16W |
| Nominated Power | 15W |

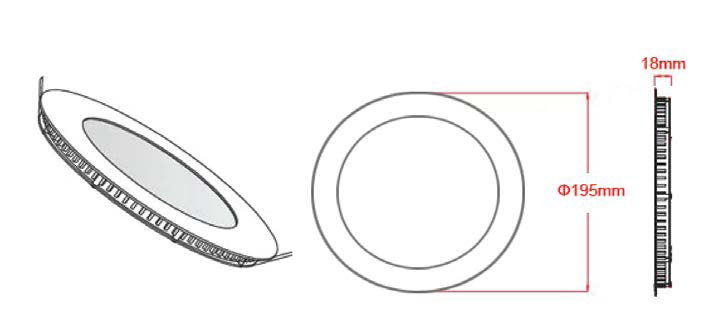

| Size | Φ195mm |
| Cut-Out | Φ180mm |
| Light source | 2835 SMD MLS China |
| LED QTY | 75PCS |
| C.C.T. | 3000K/4000K/6000K |
| Input | AC180-260V 50/60Hz |
| Power factor | ≥0.45 |
| Material | Aluminum |
| Operating Temperature | -25°C ～ +50°C |
| Storage Temperature | -20°C ～ +40°C |
| Humidity | 10% ～ 65% |
| IP Rating | IP40 |
| Gurantee | 2Years 8-10hrs/day |
| CRI | ≥70 |
| Luminous Efficiency | 70-75lm/w |
| Beam Angle | 110° |
| pcs/ Carton | 20 |
| Item Code 3000KWW | R4S1013 |
| Item Code 4000KNW | |
| Item Code 6000KCW | R4S1012 |
12-13W LED THIN PANEL
LED CHIP
| Name | SPECTRA LED THIN PANEL |
|---|---|
| Actual Power | 12-13W |
| Nominated Power | 12W |

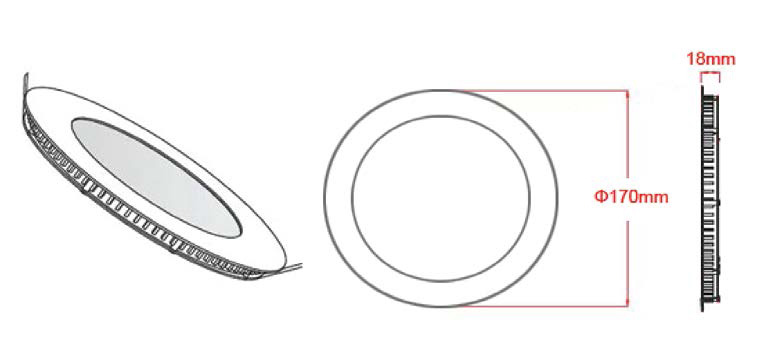

| Size | Φ170mm |
| Cut-Out | Φ160mm |
| Light source | 2835 SMD MLS TAIWAN |
| LED QTY | 60PCS |
| C.C.T. | 3000K/4000K/6000K |
| Input | AC180-260V 50/60Hz |
| Power factor | ≥0.45 |
| Material | Aluminum |
| Operating Temperature | -25°C ～ +50°C |
| Storage Temperature | -20°C ～ +40°C |
| Humidity | 10% ～ 65% |
| IP Rating | IP40 |
| Gurantee | 2Years 8-10hrs/day |
| CRI | ≥70 |
| Luminous Efficiency | 60-65lm/w |
| Beam Angle | 110° |
| pcs/ Carton | 30 |
| Item Code 3000KWW | R4S1004 |
| Item Code 4000KNW | |
| Item Code 6000KCW | R4S1003 |
