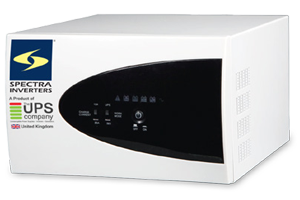

Spectra Home Inverters
H Series
Name Single Phase Home Inverter
Capacity (VA/Watts)
600 / 480 800 / 640 1000 / 800 1500 / 120 2000 / 1600 3000 / 2400 4000 / 3200 5000 / 4000
Input Voltage 220VAC
Input Frequency 50Hz
Operating Voltage Range 120 ～ 300VAC (Inverter Mode) / 145 ～ 285VAC (UPS Mode)
Operating Frequency Range 38 ～ 70Hz
Voltage Range (Mains) 160 ～ 260VAC (Inverter Mode) / 190 ～ 260VAC (UPS Mode)
Voltage Range (Battery) 220VAC ±10%
Frequency (Mains) Same as Mains
Frequency (Battery) 50Hz ±1Hz
Output Wave (Mains) Tracking Mains
Output Wave (Battery) Simulated Sine Wave
Transfer Time 10ms
Battery Voltage
12VDC 24VDC 24VDC 48VDC
Recharge Voltage
13.8V ±0.3V 17.6V ±0.6V 17.6V ±0.6V 55.2V ±1V
Recharge Current
10A / 20A (Optional)
Protection Overload / Short Circuit / Overheat
Operating Temperature 0°C ～ 40°C
Humidity Range 0% ～ 90% (Non Condensing)
Noise Level < 40dB (1 meter)
Dimensions (WxDxH) mm
285 x 272 x 165 313 x 295 x 189 363 x 220 x 358 363 x 220 x 358
Packing (WxDxH) mm
380 x 375 x 255 420 x 384 x 275 435 x 306 x 448 435 x 306 x 448
Net Weight (kg)
11.4 13.4 15 18.6 26 29 33 36
Shipping Weight (kg)
12.7 14.7 16.5 20.1 27.5 31 34.5 37.5

Note: *Above specification are indicative and may change as and when improved version is introduced.

**For the specification above 5kVA, please contact the local office of Zeeman Int. Biz. Resources Lt

Key Features

  • Fully Digitized Microprocessor Control
  • Wide Input Voltage Window
  • Short Circuit & Overload Protection
  • Cold Start
  • Compatible With Generators
  • SMD Technology
  • Swappable Battery
  • Bypass Output
  • Energy Saving Functions
  • Plug & Play Easy to Use

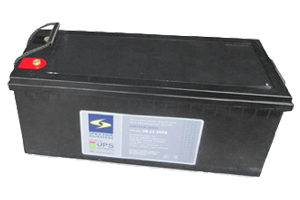

Spectra Inverters Batteries
Duration Series VRLA Battery
Name Spectra Inverters Batteries
Nominal Voltage (V) 12 (6 cells per unit)
Designed Floating Life (20°C) 12 Years
Nominal Capacity (25°C) 200Ah at 20HR-rate (to 1.75Vpc)

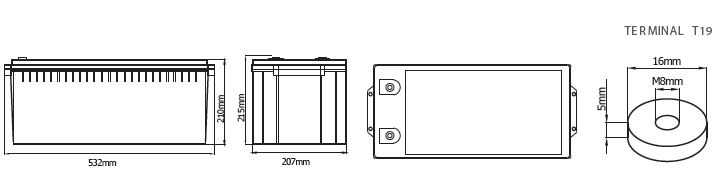

Dimensions (WxDxH) 532 x 207 x 215 mm
Approx. Weight 54.5kg
Terminal Type Female Copper Insert M8 (torque: 10~12Nm)
Internal Resistance Approx. 0.004 Ohm (fully charged at 20°C)
Max. Charge Current 50A
Max. Discharge Current (5S) 1000A
Short Circuit Current 3100A
Self Discharge Approx. 3% per month at 20°C
Ambient Temperature Discharge: -20~60°C
Charge: -20 ～ 60°C
Storage: -20 ～ 45°C
Float Charge Voltage (20 ～ 25°C) 13.6 ～ 13.8V (-3mV / cell / °C)
Equalize and Cycle Use Charge Voltage (20 ～ 25°C) 14.4 ～ 14.8V (-5mV / cell / °C)
Container Material ABS (UL94-V0 Optional)
Standards IEC 60896-21/22, UL 1989, JIS C8704, GB/T19639

Note: *Above specification are indicative and may change as and when improved version is introduced.
